A 1 U fanless router, along with eight copper GbE ports and four copper/fiber GbE ports, is perfect for patchroom and tower deployments for enterprises and service providers.

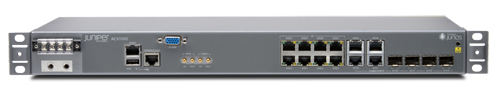

The compact, environmentally hardened 1U ACX1100 Universal Metro Router is an Ethernet-only access router with fixed configuration. The ACX1100 offers 60 Gbps performance, programming capabilities, and a fanless passive cooling system, making it ideal for outside wiring closets or tower installations.
The ACX Series Universal Metro Routers cost-effectively address today's carrier challenges of rapidly deploying new high-bandwidth services. The ACX Series brings Juniper's proven IP/MPLS core and edge leadership to the network access layer in a compact 17.5 x 1.75 x 9.4 inch (44.5 x 4.4 x 24 cm) platform that is ETSI 300 compliant. This architecture enables easy deployment in telecom or enterprise wiring closets where rack space and cooling capabilities are constrained.
| system throughput | Up to 60Gbps |
| interface support | 8xGbE Copper 4xGbE Combo (Copper/Fiber) |
| Dimensions (WxHxD) | 17.5 x 1.75 x 9.4 inches (44.5 x 4.4 x 24 cm) |
| maximum weight | 7.8 lb (3.54 kg) |
| Power (DC) | -48 Volt Telecom Nominal or -60 Volt Telecom Nominal or +24 Volt DC Nominal |
| Power (AC) | 90 VAC to 240 VAC |
| power consumption | 35W (ACX1100-AC) 40W (ACX1100-DC) |
| humidity | 95% RH non-condensing |
| noise level | 0 dB (noise) (negligible; only passive cooling used) |
| Operating temperature | -40° to 149° F (-40° to 65° C) |
