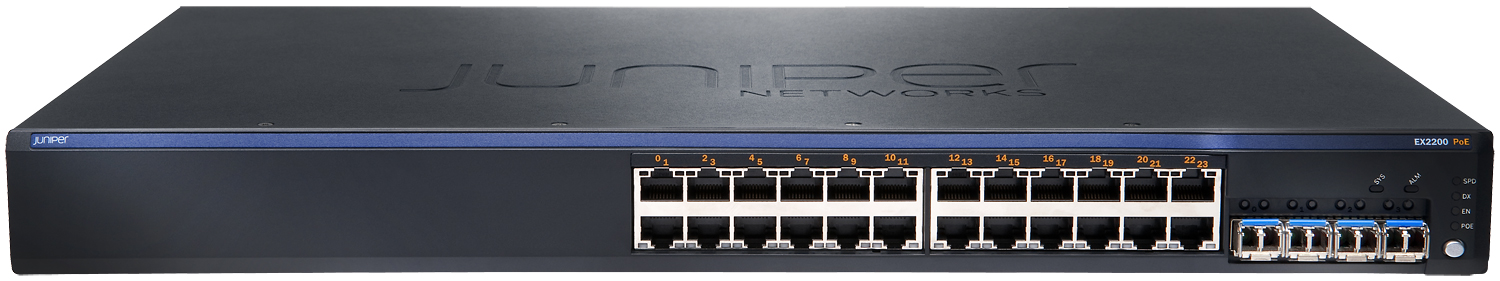

The EX2200 Ethernet switch is extremely suitable for deployment at the access layer of branch offices and campus networks, providing outstanding performance that typically only more expensive products can achieve.
Ideal for access-layer deployments in branch and campus networks, the EX2200 Ethernet Switch delivers performance typically found only in more expensive products.
EX2200 switches are low-power, low-noise 1 U devices designed for wiring closets, making them an economical solution for low-density access business needs.
Available in 24- and 48-port 10/100/1000BASE-T models with optional 802.3af Power over Ethernet (PoE) or 802.3at PoE+ for support of phones, video cameras, wireless LAN (WLAN) access points and connected devices such as video phones.
The EX2200 switch is scalable and can be deployed using Juniper Networks Virtual Chassis technology to connect up to four devices as a single logical device. The switch can be easily connected to the backbone network through the Gigabit Ethernet uplink port on the front panel.
Up to 52 1GbE
8 QoS queues/ports
Virtual Chassis
| shape | Fixed platform Virtual Chassis configuration consisting of up to 4 switches |
| Dimensions (WxHxD) | 17.4 x 1.7 x 10 inches (44.1 x 4.4 x 25.4 cm) 1 rack unit |
| Floor speed | not applicable |
| data rate | EX2200-24P/24T: 56 Gbps EX2200-48P/48T: 104 Gbps |
| throughput | EX2200-24P/24T: 42 Mpps (line speed) EX2200-48P/48T: 77 Mpps (line speed) |
| 10/100/1000BASE-T port density | not applicable |
| 10GBASE-X port density | not applicable |
| 40GBASE Quad Small Form-Factor Pluggable Plus (QSFP+) Port Density | not applicable |
| 100GBASE C Form-factor Pluggable Transceiver (SFP) Port Density | not applicable |
| flexible configuration | Integrated power supply and fan; external power supply option |
| operating system | Junos OS |
| information flow monitoring | sFlow |
| Quality of Service (QoS) queues per port | 8 |
| MAC address | 16,000 |
| jumbo frame | 9216 bytes |
| IPv4 unicast/multicast routing | 6500/1000 |
| IPv6 unicast/multicast routing | not applicable |
| Number of VLANs | 1024 |
| ARP entries | 2000 |
