A 2.5U ruggedized router with 2 modular interface card slots, capable of carrying 16 T1/E1 ports, 6 GbE copper/fiber combination ports, or 4 CHOC3/STM-1 ports, suitable for any deployment.

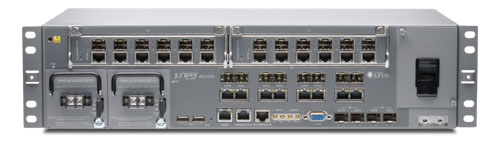

The ACX4000 Universal Metro Router is a 2.5 U, actively cooled access router that is hardened for field deployment. This versatile, high-performance mobile access platform runs on the Junos operating system.
The ACX4000 has two modular interface card (MIC) slots that can host 16 T1/E1 ports, 6 GbE copper/fiber combo ports, or 4 CHOC3/STM-1 ports, creating a versatile Mobile access platform. In addition to the 2 MIC slots, the platform offers a wide variety of fixed ports including 2 x 10GbE, 2 x GbE SFP or 8 x GbE combo (copper/fiber) ports.
This universal access routing solution is optimized to enhance the mobile subscriber experience while helping service providers significantly increase network profitability.
| system throughput | Up to 60Gbps |
| interface support | 8xGbE Combo (Copper/Fiber) (PoE++ on both ports) 2xGbE SFP 2x10GbE SFP+ 2.5 U ETSI 300 2 MIC slots with MIC option:
|
| Dimensions (WxHxD) | 17.5 x 4.375 x 9.25 inches (44.5 x 11 x 23.5 cm) |
| maximum weight | 23.8 lbs (10.82 kg) (fully configured with 2 PSUs, 2 MICs) |
| Power (DC) | -48 Volt Telecom Nominal or -60 Volt Telecom Nominal or +24 Volt DC Nominal |
| Power (AC) | 90 to 240 VAC |
| power consumption | 150 W without MIC, 45 W per MIC, 65 W per PoE++ port |
| humidity | 95% RH non-condensing |
| noise level | 33 dBA at an ambient temperature of 27 degrees |
| Operating temperature | -40° to 149° F (-40° to 65° C) |
