High performance, high port density, energy-saving metropolitan area aggregation router, supporting a complete MPLS feature set and operator Ethernet, is very suitable for metropolitan area users and network (UNI) upgrades from 1GbE to 10GbE.

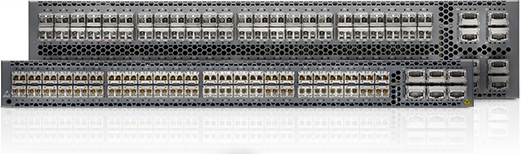

The ACX5000 Universal Metro Router is ideal for Metro Ethernet access and aggregation deployments in Carrier Ethernet. Its innovative design helps service providers build high-density, high-performance infrastructures where rack space and cooling capacity are constrained.
Designed to handle 1GbE/10GbE capacity and density, the ACX5000 router has 40GbE interfaces for network-to-network (NNI) uplinks, and support for E-LINE, E-LAN, E-TREE, and E-ACCESS, and IP/IP VPN Full support of the service. These routers support your business with unified in-service software upgrades (unified ISSU) and high-availability networking features such as Junos OS, which enable reliable and consistent delivery of mission-critical voice and video traffic.
ACX5000 routers also provide service virtualization on dedicated and customizable KVM-compatible virtual machines that can execute operational scripts and programs that monitor and analyze network performance.
| system throughput | Up to 1.44 Tbps (ACX5048) Up to 2.56 Tbps (ACX5096) |
| interface support | ACX5048: 48 SFP/24 copper 1GbE; 48 SFP+ 10GbE (72 with breakout cables); 6 QSFP+ 40GbE (each configurable to 4 x 10GbE); 3 management interfaces (1 RJ-45, 2 SFP) ACX5096: 96 SFP/48 copper 1GbE; 96 SFP+ 10GbE (104 with breakout cables); 8 QSFP+ 40GbE (2 configurable to 4 x 10GbE); 2 management ports (1 RJ-45, 1 SFP) |
| Dimensions (WxHxD) | ACX5048: 17.36 x 1.72 x 20.48 inches (44.09 x 4.37 x 52.02 cm) ACX5096: 17.36 x 3.46 x 22.44 inches (44.09 x 8.8 x 57 cm) |
| maximum weight | ACX5048: 21.8 lbs (9.9 kg) ACX5096: 32.5 lbs (14.74 kg) |
| Power (DC) | -36 to -72 volts DC |
| Power (AC) | 110 to 240 volt single phase |
| power consumption | ACX5048: Approx. 350 W (with optional SFP) ACX5096: Approx. 550 W (with optional SFP) |
| humidity | 95% RH non-condensing |
| noise level | 0 dB (noise) |
| Operating temperature | 32° to 104° F (0° to 40° C) |
