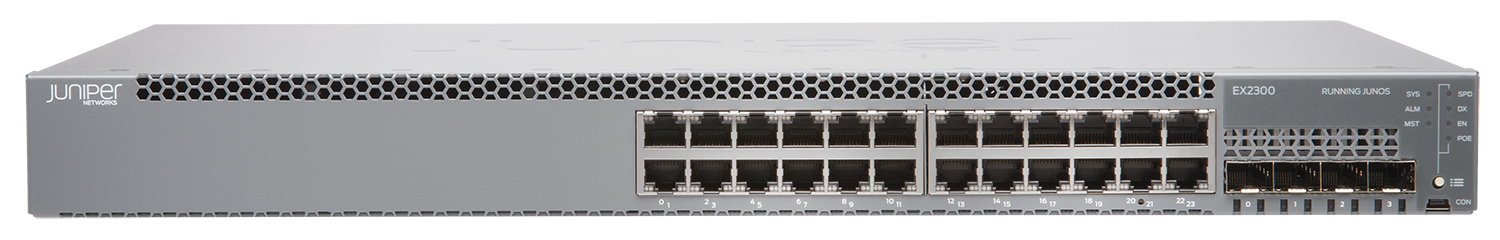

The EX2300 Ethernet switch provides a compact, high-density, and cost-effective solution, suitable for small network environments with a high emphasis on space and energy conservation.
The EX2300 Ethernet switches provide a small, high-density, cost-effective solution for small network environments where space and energy savings are critical. The EX2300's small form factor, requiring only 1U of space, makes it ideal for access-layer deployments in micro-branch offices, retail and workgroup environments, and converged network access in larger networks.
Two EX2300 switch models are available, offering 24 or 48 10/100/1000BASE-T ports in a single platform. Both models have the option to support/not support IEEE 802.3af Power over Ethernet (PoE) or 802.3at PoE+ (for powering connected network devices). An optional front-panel 10GbE uplink port supports connection to higher-level devices.
The EX2300 switches support Juniper Networks' Virtual Chassis technology, allowing up to four platforms to be interconnected and managed as a single logical device. The switches can also be configured as satellite devices in Junos Fusion Enterprise deployments, which aggregate large numbers of access switches into a single logical management platform.
| shape | Fixed platform Virtual Chassis configuration consisting of up to 4 switches Junos Fusion Enterprise satellite device |
| Dimensions (WxHxD) | EX2300-24T/24P/48T: 17.4 x 1.75 x 10.2 inches (44.19 x 4.45 x 25.9 cm) 1 rack unit EX2300-48P: 17.4 x 1.75 x 12.2 inches (44.19 x 4.45 x 30.98 cm) 1 rack unit |
| Floor speed | 80 Gbps |
| data rate | EX2300-24P/24T: 128 Gbps EX2300-48T/48P: 176 Gbps |
| throughput | EX2300-24P/24T: 95 Mpps (line speed) EX2300-48T/48P: 130 Mpps (line speed) |
| 10/100/1000BASE-T port density | not applicable |
| 10GBASE-X port density | not applicable |
| 40GBASE Quad Small Form-Factor Pluggable Plus (QSFP+) Port Density | not applicable |
| 100GBASE C Form-factor Pluggable Transceiver (SFP) Port Density | not applicable |
| flexible configuration | Integrated power supply and fan |
| operating system | Junos OS |
| information flow monitoring | sFlow |
| Quality of Service (QoS) queues per port | 8 |
| MAC address | 16,000 |
| jumbo frame | 9216 bytes |
| IPv4 unicast/multicast routing | 4096/2048 |
| IPv6 unicast/multicast routing | 2048/1024 |
| Number of VLANs | 4093 |
| ARP entries | 1500 |
