The EX2300-C Ethernet switch provides a compact, power-saving, and cost-effective solution for low-density branch offices and enterprise workgroups. Due to its fanless design, the EX2300-C is completely silent, making it highly suitable for commercial applications such as open office deployments and retail stores.
The EX2300-C Ethernet switch provides a compact, power-efficient, cost-effective solution for low-density branch offices and enterprise workgroups. Thanks to its fanless design, the EX2300-C is completely silent, making it ideal for open office deployments and commercial applications such as retail stores.

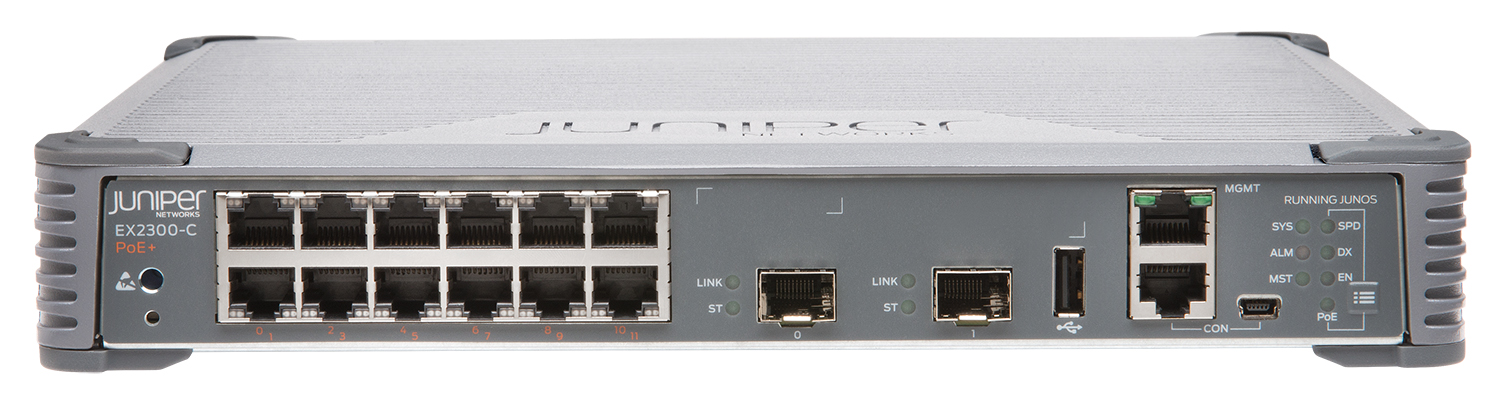

The EX2300-C provides 12 front-panel 10/100/1000BASE-T access ports and two optional SFP+ 10GbE uplink ports for connection to higher-level equipment. Access ports are available with or without IEEE 802.3af Power over Ethernet (PoE) or 802.3at PoE+ for powering connected network devices.
When used with compatible EX Series switches, the EX2300-C supports Juniper Networks' unique Virtual Chassis technology. Interconnect up to three switches with a single Virtual Chassis-compatible EX Series switch, allowing them to be managed as a single device. The EX2300-C can also be configured as a satellite device in a Junos Fusion Enterprise deployment that aggregates large numbers of access switches into a single logical management platform.
| shape | Fixed platform Virtual Chassis configuration consisting of up to 4 switches Junos Fusion Enterprise satellite device |
| Dimensions (WxHxD) | 10.98 x 1.72 x 9.4 inches (27.9 x 4.4 x 23.9 cm) 1 rack unit |
| Floor speed | 40 Gbps |
| data rate | 64 Gbps |
| throughput | 47 Mpps |
| 10/100/1000BASE-T port density | not applicable |
| 10GBASE-X port density | not applicable |
| 40GBASE Quad Small Form-Factor Pluggable Plus (QSFP+) Port Density | not applicable |
| 100GBASE C Form-factor Pluggable Transceiver (SFP) Port Density | not applicable |
| flexible configuration | fanless design |
| operating system | Junos OS |
| information flow monitoring | sFlow |
| Quality of Service (QoS) queues per port | 8 |
| MAC address | 16,000 |
| jumbo frame | 9216 bytes |
| IPv4 unicast/multicast routing | 4096/2048 |
| IPv6 unicast/multicast routing | 2048/1024 |
| Number of VLANs | 4093 |
| ARP entries | 1500 |
