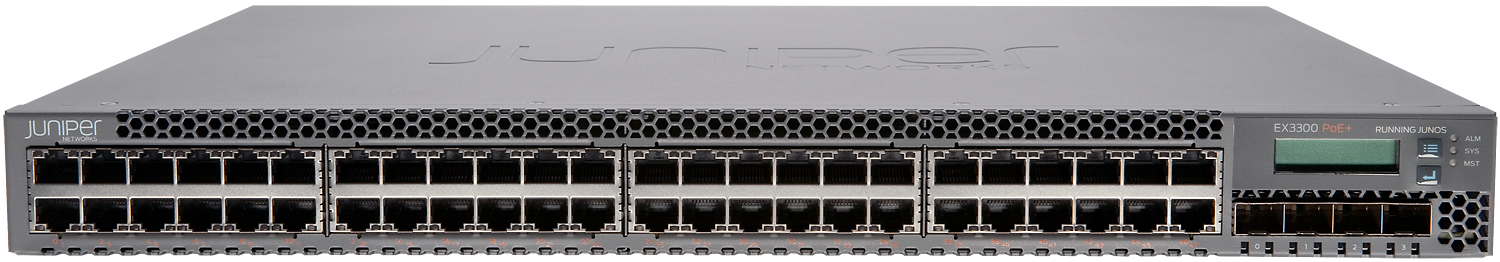

The EX3300 Ethernet switch is a flexible and cost-effective enterprise access solution suitable for campus and data center environments. Using Zhanbo network cluster switching technology, connect up to 10 EX3300 switches to each other and use them as one device
The EX3300 Ethernet switch is a flexible and cost-effective enterprise access solution for campus and data center environments. The EX3300 is a compact, scalable switching solution supporting converged data, voice, and video, available in various models with 24 or 48 10/100/1000BASE-T ports and four dual-mode Gigabit Ethernet (GbE)/10 GbE Small form-factor pluggable transceiver (SFP/SFP+) uplink port.
EX3300 switches support IEEE 802.3af Power over Ethernet (PoE) or 802.3at PoE+. The switch offers front-to-back and back-to-front cooling options and can be configured using DC power supplies. Juniper Networks Virtual Chassis technology can be used to connect as many as 10 EX3300 switches to each other as one device, providing a scalable solution of "buy as you need, gradually expand" to support the needs of continuously expanding network environments.
| shape | Virtual Chassis configurations with up to 10 switches on fixed platforms |
| Dimensions (WxHxD) | 17.4 x 1.7 x 12 inches (44.1 x 4.3 x 31 cm) 1 rack unit |
| Floor speed | 40-80Gbps |
| data rate | EX3300-24P/24T/24T-DC: 128 Gbps EX3300-48P/48T/48T-BF: 176 Gbps |
| throughput | EX3300-24P/24T/24T-DC: 95 Mpps (line speed) EX3300-48P/48T/48T-BF: 130 Mpps (line speed) |
| 40GBASE Quad Small Form-Factor Pluggable Plus (QSFP+) Port Density | not applicable |
| 100GBASE C Form-factor Pluggable Transceiver (SFP) Port Density | not applicable |
| flexible configuration | Graceful Routing Engine Switchover (GRES) in Virtual Chassis configurations; external power supply option |
| operating system | Junos OS |
| information flow monitoring | sFlow |
| Quality of Service (QoS) queues per port | 8 |
| MAC address | 16,000 |
| jumbo frame | 9216 bytes |
| IPv4 unicast/multicast routing | 8000/4000 |
| IPv6 unicast/multicast routing | not applicable |
| Number of VLANs | 4096 |
| ARP entries | 4000 |
